Calibration report available on request

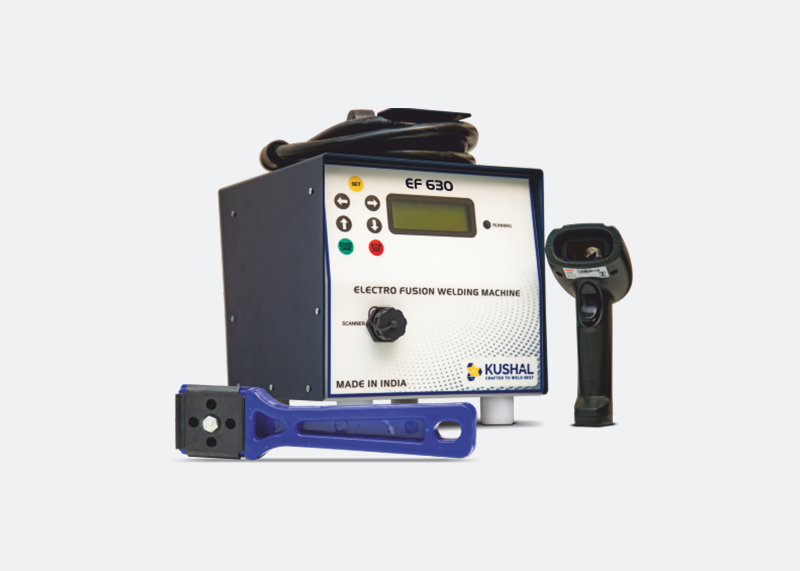

| Model | EF 630 |
|---|---|
| Input Voltage | Single Phase 230v/ac |
| Freq. | 50/60 Hz |
| Gen. Req. | 5 Kva With Avr Control |
| Output Voltage | 8-48v/8-80v |
| Power | 4500 Va |
| Current | 100 Amp |
| Max Dia | 630mm |
| Weight | 18kg |
| Operating Temp. | -10°C to +45°C |
| Power Cable Length | 3 Meter |
| Fusion Cable Length | 3 Meter |
| Fusion Process | Auto/manual |
| Automatic Voltage Control | Yes |
| Resistance Check | No |
| Temperature Compensation | Yes |
| Ip Rating | No |
| Fusion Error Display On Screen | Yes |
| Andriod App With Gps & Data Log | No |
| Data Log | Optional |
| Classification | ISO 13950-2 CLASS B ISO 12176-2(P25US1VAK X) / (P25US2VAK_X) |
