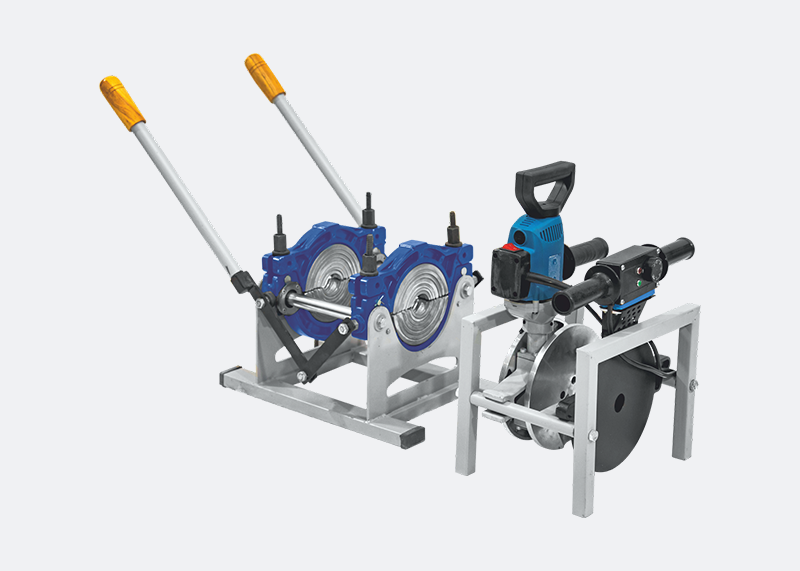

Push Series Manual Butt Fusion Machine
Application & Features :
- Suitable for butt fusion welding of plastic pipes and fittings made of PE, PR and PVDF in construction site or workshop.
- Consists of basic frame, heating plate, and support for heating plate.
- Removable PTFE coated heating plate with inbuilt Thermostat temperature control system.
- Electric facer cutter with double cutting edge blades optional.
- It is made of lightweight and high strength material; simple structure and easy to operate.
- Use of high quality pressure casting allows low weight without compromising strength and performance, while providing extra strength.
Technical Specifications :
| Model |
P110 |
P160 |
| Welding range (mm) |
40.50.63.75.90.110. |
50.63.75.90.110.125.140.160 |
| Heating Plate Max. Temp |
270°C |
270 Oc |
| Temp. Deviation in surface |
<+5°C |
<+-5 oc |
| Working voltage |
220V 50Hz/3kva |
220V 50Hz |
| Heating Plate Power |
1.0 KW |
2.2 KW |
| Face Power |
1.0 KW |
1.0 KW |
| Net Weight Machine & Heater Support |
18 KGS |
20 KGS |
